When choosing an LED display, many customers focus on pixel pitch, brightness, and price. However, the LED packaging technology behind the display also plays an important role in image quality, durability, and application performance.

Currently, the most common LED packaging technologies include SMD, GOB, and COB. Each technology has its own advantages and is suitable for different application scenarios.

This article will explain the differences between COB, SMD, and GOB LED displays, helping you choose the right LED screen solution for your project.

---

What Is SMD LED Display?

SMD (Surface Mounted Device) is the most widely used LED packaging technology in the LED display industry.

With SMD technology, red, green, and blue LED chips are packaged together into a single LED component and mounted directly onto the PCB board.

SMD LED displays have been widely used for many years because of their mature technology, reliable performance, and competitive price.

Advantages of SMD LED Display

1. Mature and stable technology

SMD technology has been developed for many years, with a complete supply chain and proven reliability.

2. Wide range of applications

SMD LED displays can be used for:

• Indoor LED screens
• Outdoor advertising screens
• Rental LED displays
• Stage backgrounds
• Commercial displays

3. Cost-effective

Compared with COB technology, SMD LED displays usually have a lower production cost, making them a popular choice for large-scale projects.

Limitations of SMD LED Display

The LED chips are exposed on the module surface, which means the screen surface has limited protection against impact, dust, and moisture.

For applications requiring higher protection and durability, GOB or COB technology may be more suitable.

---

What Is GOB LED Display?

GOB (Glue on Board) is an advanced LED packaging technology designed to improve the protection and durability of LED modules.

During the GOB process, a transparent protective layer is applied over the LED module surface. This layer helps protect the LED components from external damage.

GOB technology is especially popular for fine pixel pitch indoor LED displays.

Advantages of GOB LED Display

1. Better surface protection

The protective coating improves resistance against:

• Accidental impact
• Dust
• Moisture
• Daily wear and tear

This makes GOB LED displays suitable for high-traffic environments such as shopping malls, conference rooms, and retail stores.

2. Suitable for fine pixel pitch displays

GOB technology is commonly used in:

• P1.25 LED displays
• P1.56 LED displays
• P1.86 LED displays
• P2.5 LED displays

It helps improve reliability for small pixel pitch LED screens.

3. Better user experience

The surface protection reduces the risk of LED damage during installation and transportation, which is especially important for rental and commercial applications.

Limitations of GOB LED Display

GOB LED displays usually cost more than standard SMD LED displays because of the additional manufacturing process.

---

What Is COB LED Display?

COB (Chip on Board) is a more advanced LED packaging technology where LED chips are directly mounted onto the PCB board without traditional LED packages.

Unlike SMD, which uses individual LED components, COB integrates the LED chips directly onto the circuit board.

Advantages of COB LED Display

1. Excellent protection

Because the LED chips are directly integrated and covered with protective material, COB displays offer strong protection against physical damage.

2. Better performance for fine pixel pitch

COB technology is often used for ultra-fine pixel pitch LED displays, such as:

• P0.9
• P1.2
• P1.5

It is suitable for applications requiring extremely high image quality.

3. Higher reliability

COB technology reduces the risk of LED component damage and provides better durability for demanding environments.

Limitations of COB LED Display

The manufacturing process is more complex, resulting in a higher cost compared with SMD and GOB LED displays.

---

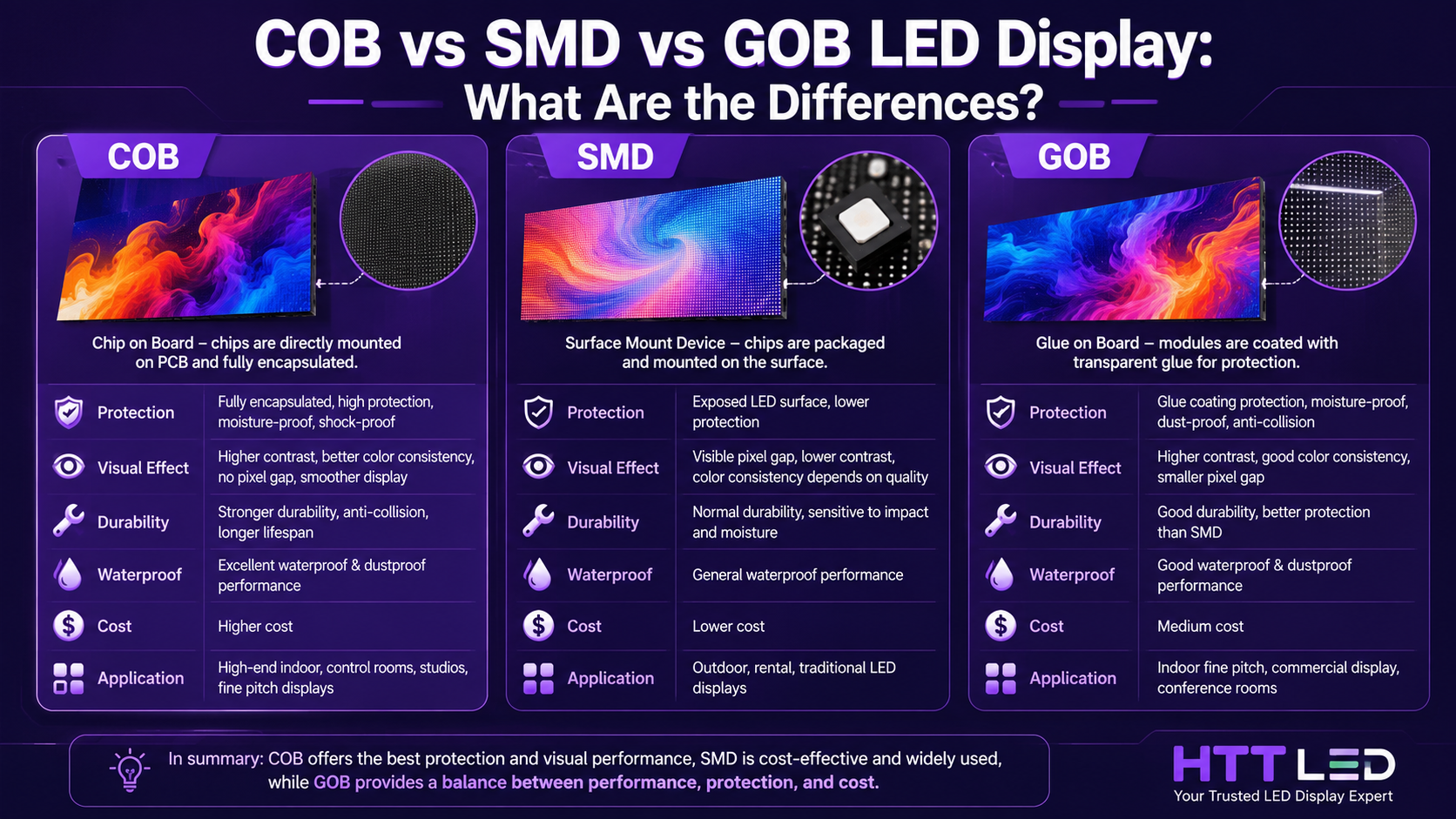

COB vs SMD vs GOB LED Display: Comparison

---

Which LED Display Technology Should You Choose?

The best choice depends on your application, budget, and performance requirements.

Choose SMD LED Display If:

• You need a cost-effective solution
• The project requires a large display area
• Standard indoor or outdoor applications

Examples:

• Outdoor advertising screens
• Stage LED screens
• Rental LED displays

---

Choose GOB LED Display If:

• You need better protection than standard SMD
• The screen will be installed in high-traffic areas
• You need a reliable fine pixel pitch indoor display

Examples:

• Shopping malls
• Retail stores
• Meeting rooms
• Exhibition halls

---

Choose COB LED Display If:

• You require ultra-high image quality
• The viewing distance is very close
• The project is a premium commercial installation

Examples:

• Control rooms
• Broadcast studios
• Luxury conference rooms

---

Conclusion

SMD, GOB, and COB LED displays each have their own advantages.

SMD LED displays remain the most widely used option because of their mature technology and competitive price.

GOB LED displays provide enhanced protection and are an excellent choice for commercial indoor applications where reliability matters.

COB LED displays represent a high-end solution for ultra-fine pixel pitch applications requiring premium image quality.

When selecting an LED display, it is important to consider not only the technology, but also the installation environment, viewing distance, maintenance requirements, and project budget.

As a professional LED display manufacturer in Shenzhen, China, HTT LED provides customized LED display solutions, including SMD, GOB, and fine pixel pitch LED screens for global customers.
